| Specification | Parameter |
|---|---|
| Type: | Electronics |
| Category: | ESC Controller |
| Model: | 80A BLS 4-in-1 ESC |
| Dimensions: | 45.5mm * 41.5mm * 6.4mm |
| Net Weight: | 15.05g |
| Mounting Hole Pattern: | 30.5mm * 30.5mm, φ4mm |
| Firmware: | BLHeli_S E_X_40 |
| Input Voltage: | 3-8s (LiPo) |
| Supported Protocols: | PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 |
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$70.00
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:

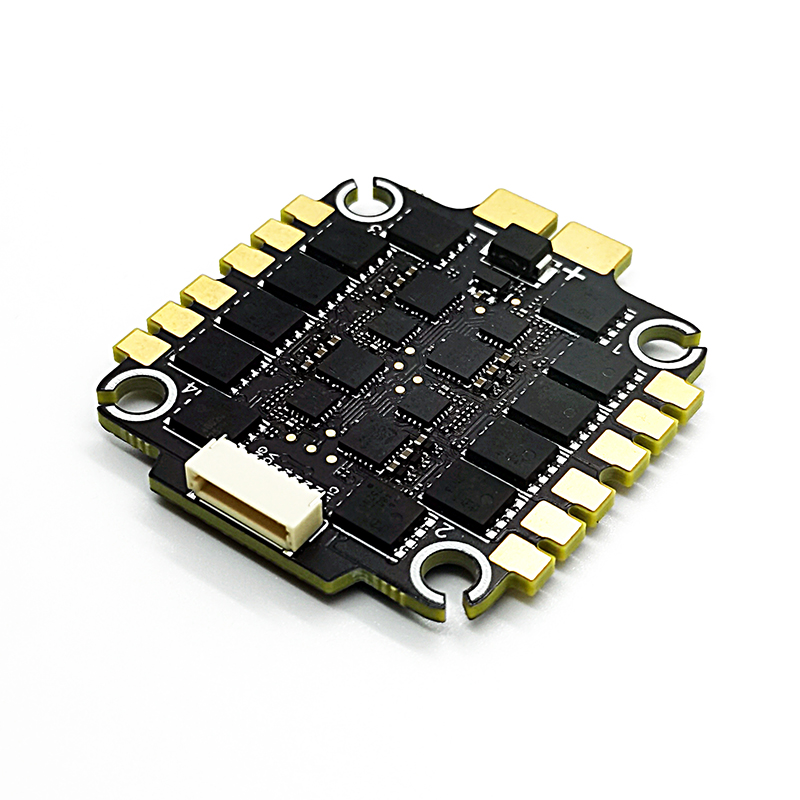

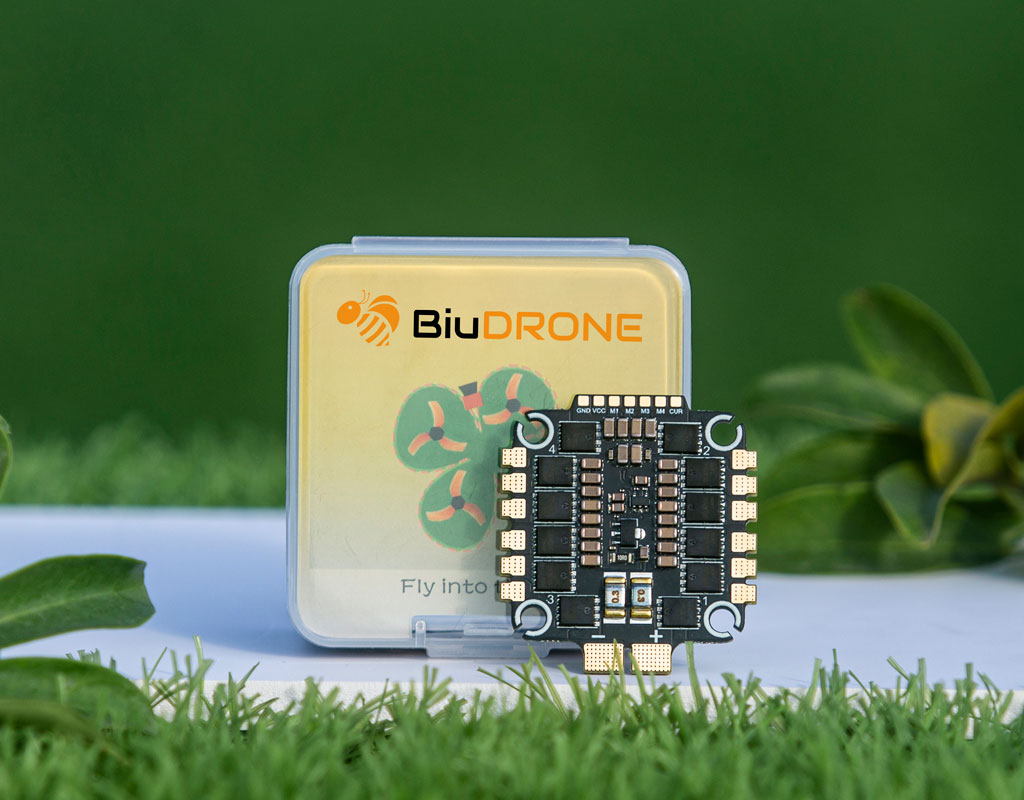

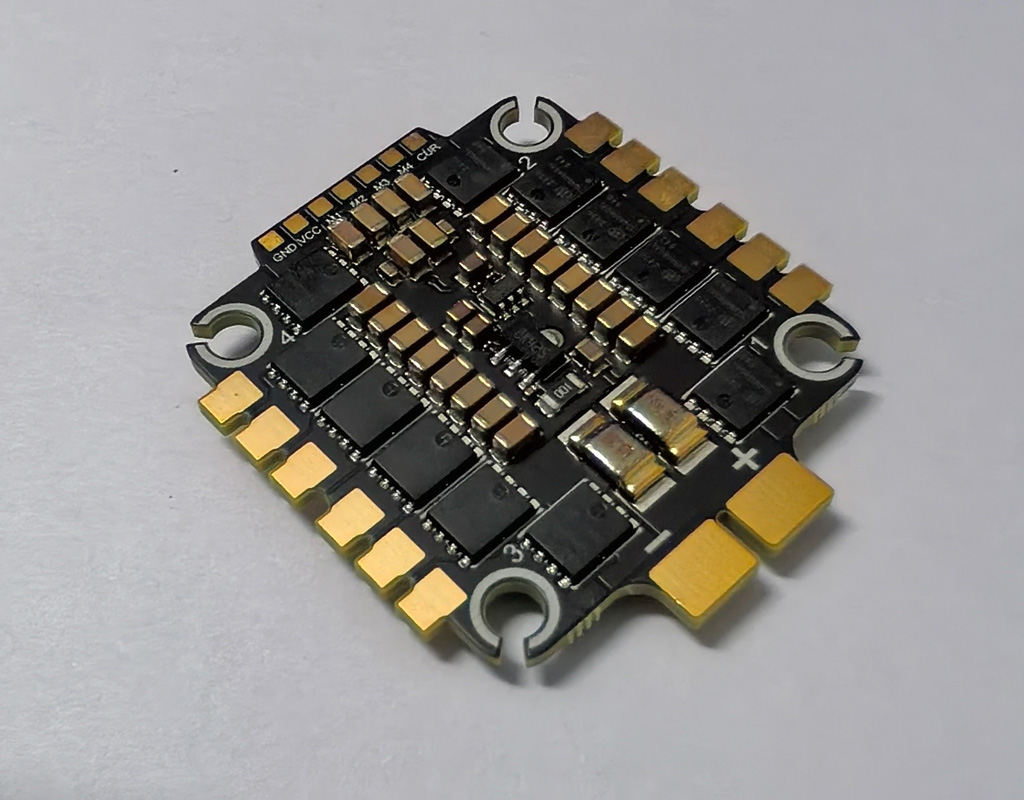

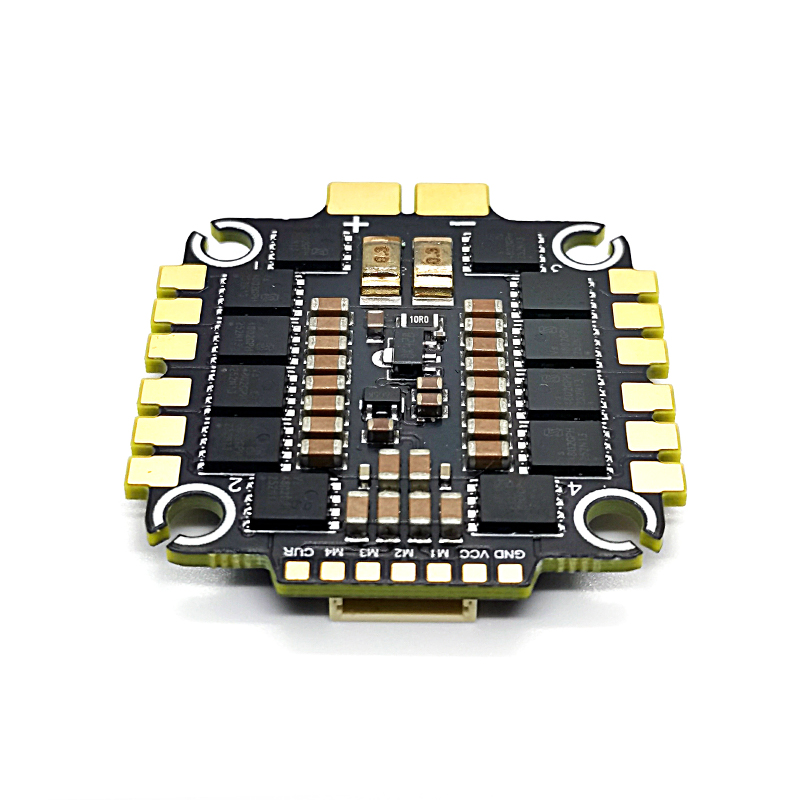

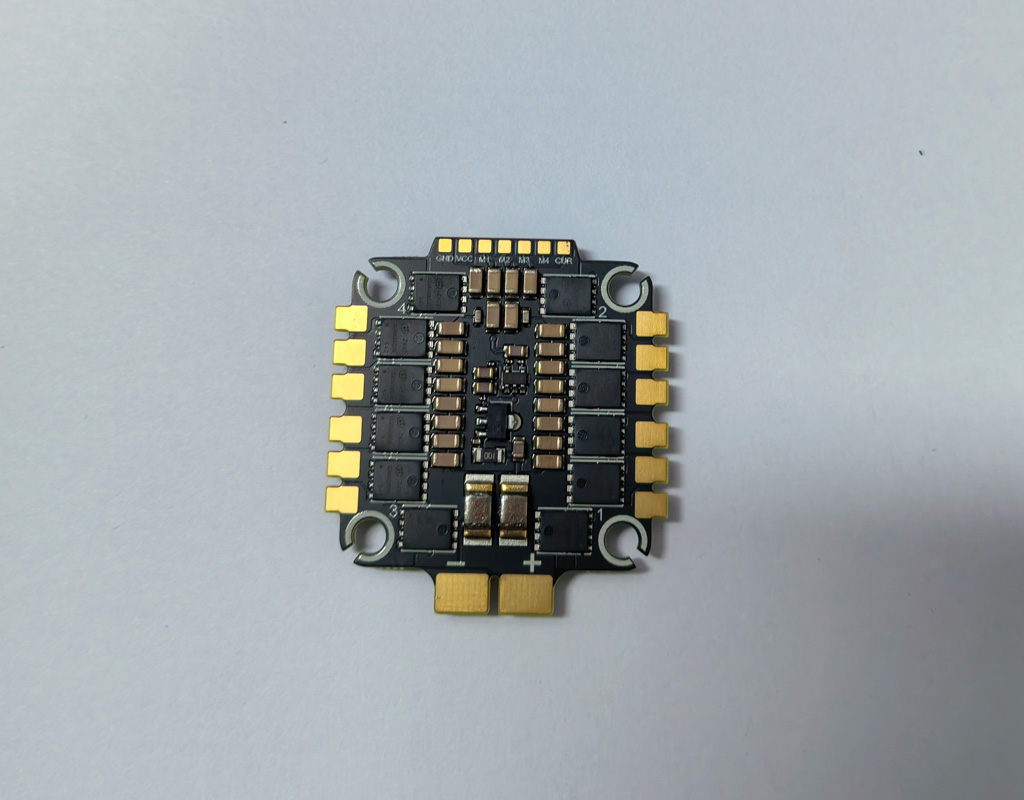

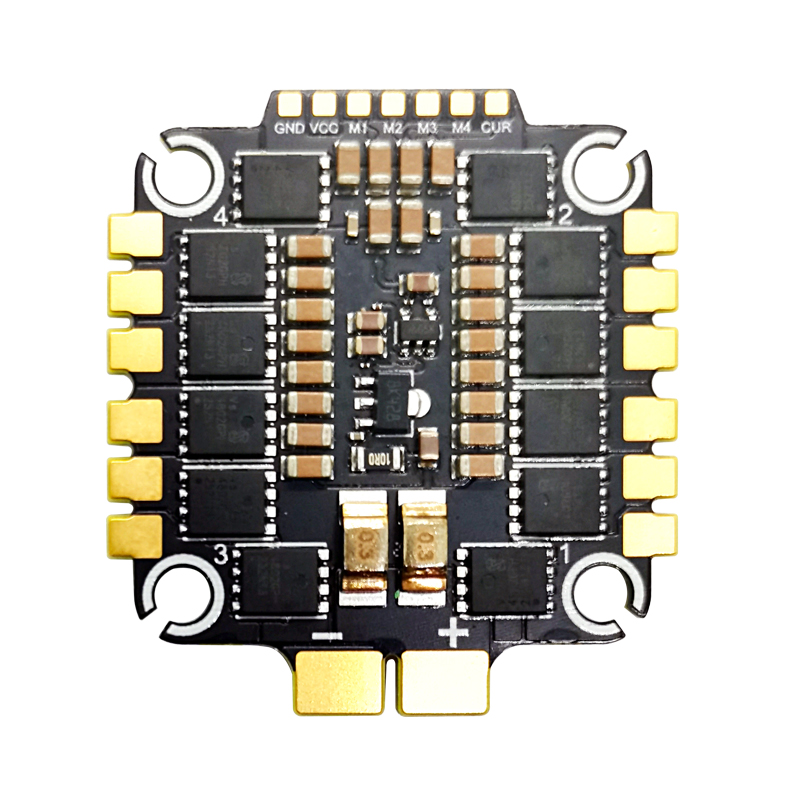

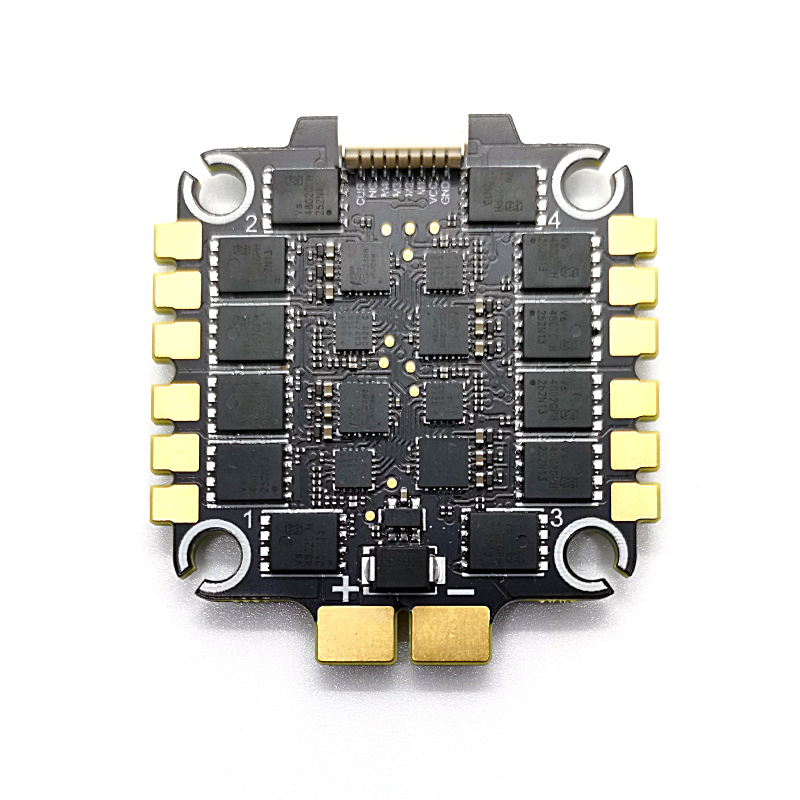

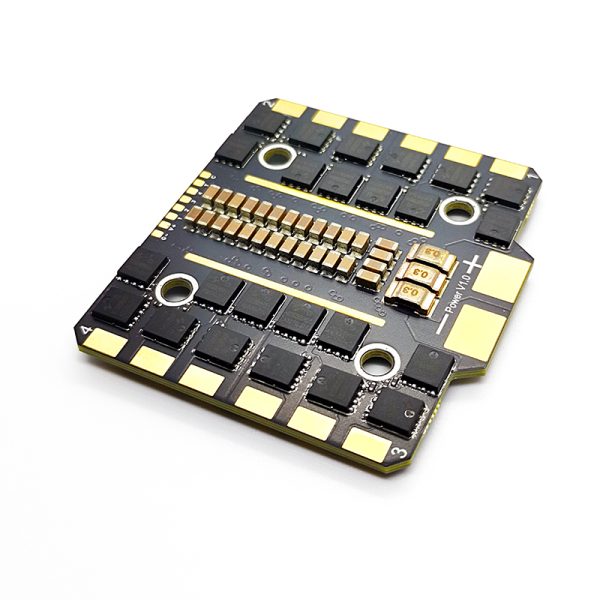

| Product model | BLS 80A 4-in-1 ESC |
| Input voltage | 3-8S LiPo |
| MCU | EFMBBB5IF16G |
| Support firmware | BJHeli_S E_X_40 (Factory default) Bluejay E_X_40 |
| Driver chip | CSC2388/SAG288/FD6288 |
| Continuous current | 80A(Test : Good heat dissipation) |
| Instantaneous current | 90A(Test : Good heat dissipation) |
| Standby current | <15mA |
| BBC output voltage/current | NO BBC |
| TVS protective diode | Yes |
| ESC/Motor Protocol | PWM、Oneshot125、Oneshot42、Multishot、Dshot150、Dshot300、Dshot600 |
| Galvanometer ratio | 100 |
| PCB Color | Matte black |
| Dim(L * W * H) | 58*53.2*6.4mm |
| Fixed hole spacing | 30.5*30.5mm |
| Weight | 30g |
